Hydraulic Tipping Trailer

Rehmat Lawn Mowers Hydraulic Tipping Trailer – 8–10 Ton

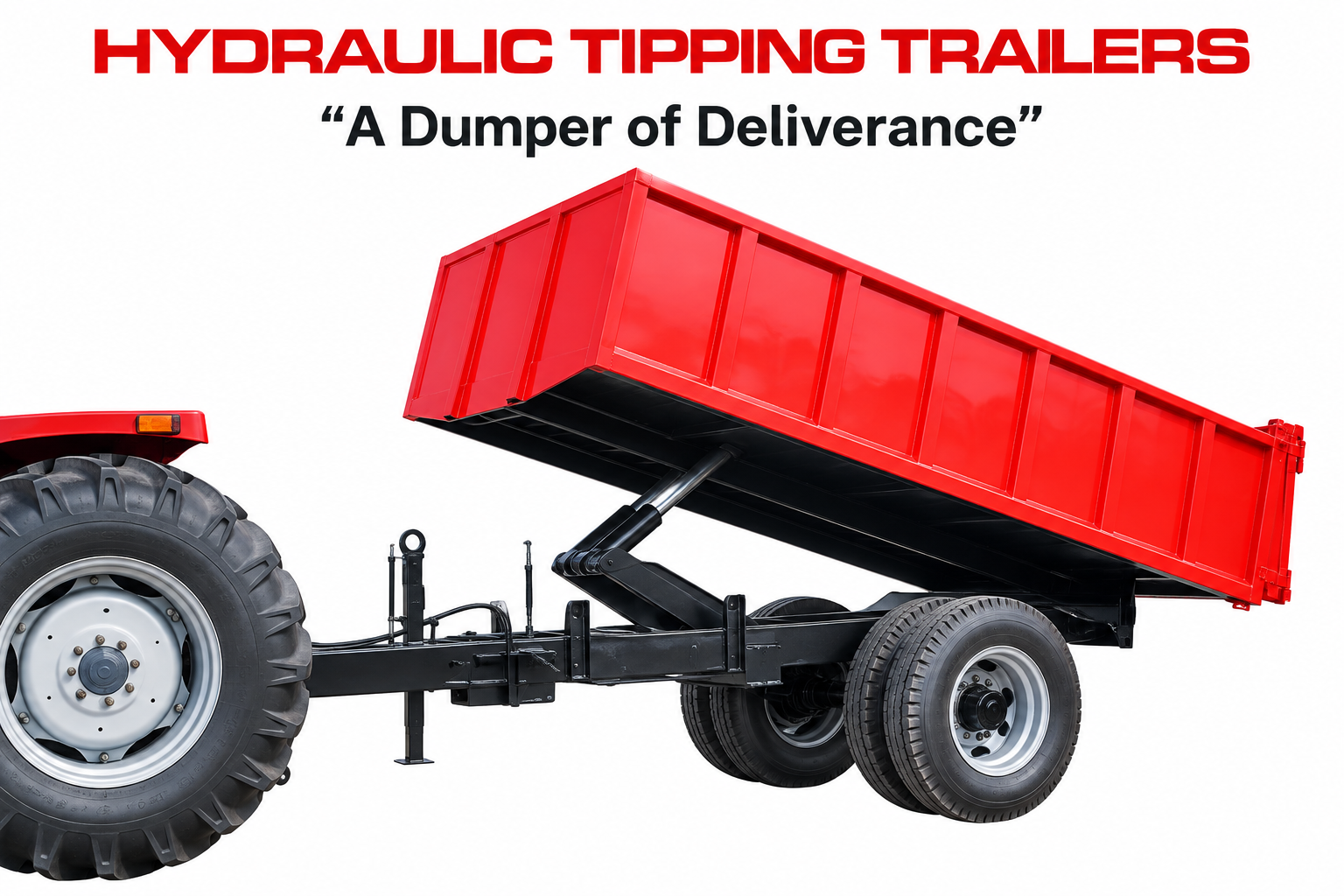

The Hydraulic Tipping Trailer is a heavy-duty tractor-operated trailer designed for efficient transportation and unloading of agricultural, construction, and other bulk materials. Its hydraulic tipping system provides a 55-degree tipping angle for quick and convenient unloading.

🚜 Hydraulic Tipping Trailer Specifications

📋 Description	Spec. B
⚙️ Type	Hydraulic Tipping
⚖️ Capacity	8–10 Ton
📦 Vessel Size	12′ × 7′ × 2.5′
🧱 Floor Thickness	3mm
🧱 Side Wall Thickness	2.5mm
🔩 Lower Chassis Channel	10″ × 3″
🔩 Upper Chassis Channel	6″ × 3″
📏 Axle Length	56″
⭕ Axle Outer Diameter	6.50″
🧱 Axle Wall Thickness	3/8″
🛞 Rim Quantity	4
🛞 Rim Size	9.00-20
🔧 Tipping Device	Double Acting Heavy Duty Locally Made Ram with Mechanical Linkage
📐 Tipping Angle	55 Degrees
⏱️ Maximum Lift Time	10 Seconds at 1500–1789 RPM of Tractor Engine to Full Height in Empty Condition
🔀 Spool Valve	Imported – Minimum Rod Dia. 20mm
🔀 Selector Valve	Imported – Rod Dia. 20mm
💧 Hydraulic Hoses	Imported – Crimping & Hoses Rated for 4000 PSI Pressure
